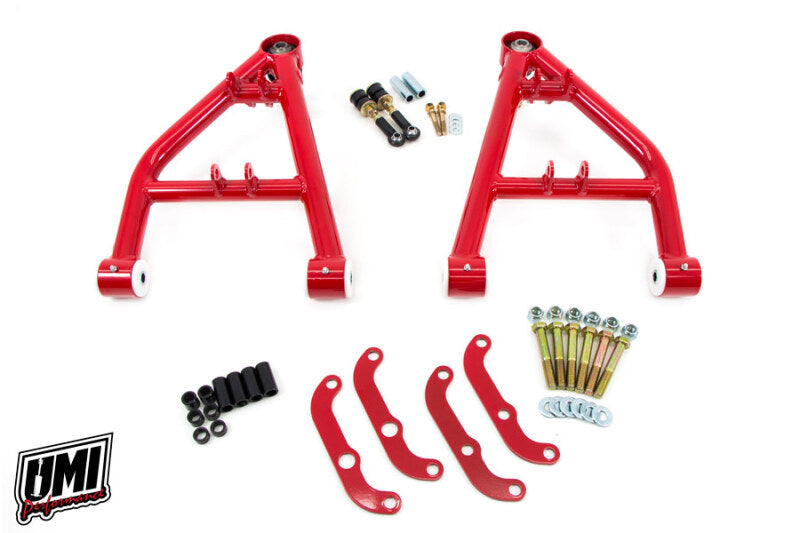

UMI Performance 64-72 GM A-Body Tubular Lower Front A-Arms Corner Max Standard Ball Joint - 4062-R

UMI’s Corner Max line of race a-arms are designed from the ground up to be the best performing stock mount a-arm upgrade on the market. The P/N 4062 arms are strong yet lightweight and feature a removable lower mounting system to permit spring changes at the track without separating the ball joints. The ball joint cup is moved forward the proper amount to add up to 4 degrees caster potential and is loaded with high quality Howe standard height ball joints. The double shear coilover mount accepts race industry standard ½” rod end shocks and comes with spacers for all popular models. Also included is a double shear sway bar mount and corresponding end link. The end link fits UMI 4035 and 4067 as well as many other factory fit sway bars. The P/N 4062 excels when paired with our DSGTECH 2” lowering tall spindle (tall spindle requires 4056 and standard ball joint height upper and lower).




EPA Status: N/A
