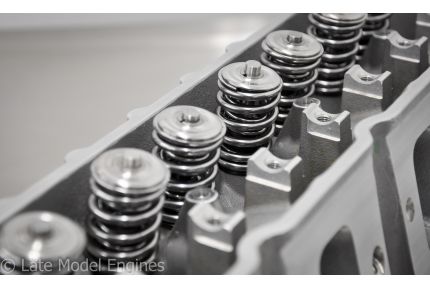

LME Ported LS7 cylinder Heads
LME Ported LS7 cylinder Heads
Couldn't load pickup availability
By far the most established member in the LS engine family, the LS7, has proven time and time again to be the prime choice of late model hot rodders worldwide. Send us your GM factory cores and allow us to sculpt our proven port configuration and build you a set-up that will dominate any street or track you choose to bo battle on. Get going faster even faster with the LME core exchange program!
There are multiple methods of obtaining a set of LME CNC ported heads perfectly sculpted for your hot rod:
Standard Core Exchange - We will swap out your useablecylinder heads with a freshly ported and prepaired set once we recieve them via your prefered shipping method or drop-off. Therefore, you will not be charged for the core exchange.
Expedited Core Exchange - We will ship you a set of CNC ported heads fresh out of the machine and set up to your cam specs once the order is placed. Once your usablecores have made their way to us, SPS will refund the cost of the cores.
Current GM LS7 Cylinder Head core value is $1,500.00
**No matter what method you choose, once order is placed, S.P. Speed will contact you to ensure the best option is used for you or your shop. We will cover any details and clearify any question or concerns you may have. We will also seek out all possible information of the build to better provide the best service and parts for your project. This expedited service allows you or your installation shop to have all the parts in hand to complete a CNC ported head install without the down time and hassle of waiting on ported heads to arrive.
CNC Heads, Parts: CHE Bronze Guides Reuse GM Titanium Intake valves, REV Stainless Severe Duty Exhaust Valves, LME .660" Lift Spring Kit w/ Titanium Retainers
*All Cylinder Heads Are Priced As ASSEMBLED Pairs
**CORE CHARGE WILL BE REFUNDED WHEN USEABLE CORES ARE RETURNED BY CUSTOMER
| FLOW NUMBERS WITH 4.125" BORE @ 28" WATER | ||||||||||
| LIFT | .100" | .200" | .300" | .400" | .500" | .600" | .700" | .800" | Valve Size | |
| INTAKE | 85 | 171 | 261 | 325 | 361 | 383 | 398 | 403 | 2.200" | |
| EXHAUST | 63 | 117 | 162 | 208 | 246 | 266 | 279 | 285 | 1.615" | |
*Flowed with radius inlet intake/no pipe exhaust
|
Intake Volume (cc) |
285 |
Rocker Config. |
GM LS7 8mm bolts |
|
Exhaust Volume (cc) |
90 |
Intake Port Config. |
LS7 |
|
Valve Guide Material |
Manganese Bronze |
Head Bolts/ Cyl. |
4 |
|
Minimum Bore Size (in) |
4.125" |
Valve Angle (degrees) |
12 |
LME Standard Head Porting Process
|
|
CNC Heads, Parts: CHE Bronze Guides Reuse GM Titanium Intake valves, REV Stainless Severe Duty Exhaust Valves, LME .660" Lift Spring Kit w/ Titanium Retainers
